Description:
General Information
Manufacturer: AddOn
Manufacturer Part Number: VGACAT5EXTENDER
Brand Name: AddOn

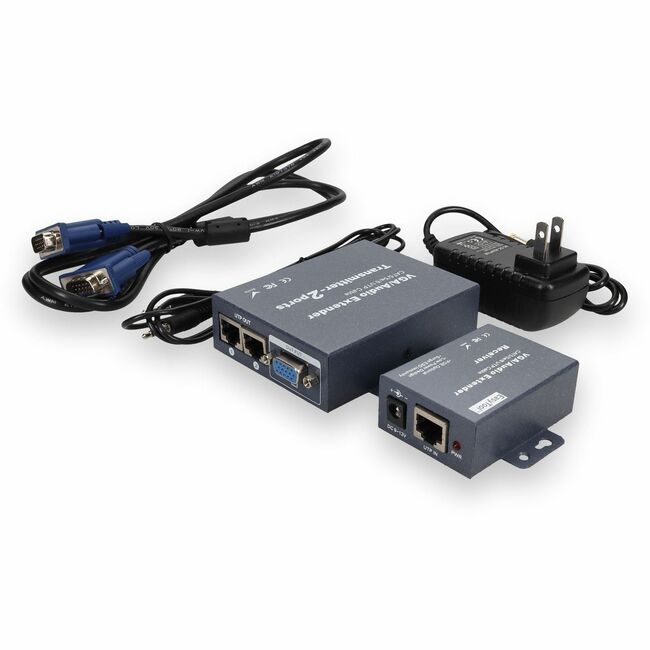

Product Name: VGA over Cat5 Display Extender Kit up to 328ft (100M)
Marketing Information: This is a VGA female to RJ-45 female black extender. It provides VGA video extension over Cat5 cables, allowing for connectivity between display devices and the extension of VGA output over Ethernet at a distance up to 100 meters. This device offers a maximum resolution of 1920x1200 (WUXGA). This part is designed to fit your application needs by providing VGA to RJ-45 connectivity. Our 100% tested extenders are backed by a 3 year warranty and are guaranteed to work the first time.
Packaged Quantity: 1
Product Type: Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 250 ft (76200 mm)
Video
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
Network (RJ-45): Yes
VGA In: Yes
VGA Out: Yes
Number of Network (RJ-45) Ports: 3
Number of VGA Inputs: 1
Number of VGA Outputs: 2
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Physical Characteristics
Color Family: Black
Product Color: Black
Transmitter Height: 3" (76.20 mm)
Transmitter Width: 6" (152.40 mm)
Transmitter Depth: 8" (203.20 mm)
Transmitter Weight (Approximate): 743.9 g
Miscellaneous
Package Contents:
- 1 x Transmitter
- 1 x Receiver
- Mounting Brackets
Application/Usage: Monitor
Country of Origin: United States
TAA Compliant: No
Warranty
Limited Warranty: 3 Year
