General Information

---

Manufacturer: EnGenius Technologies, Inc
Manufacturer Part Number: EPA5006GAT
Brand Name: EnGenius
Product Model: EPA5006GAT

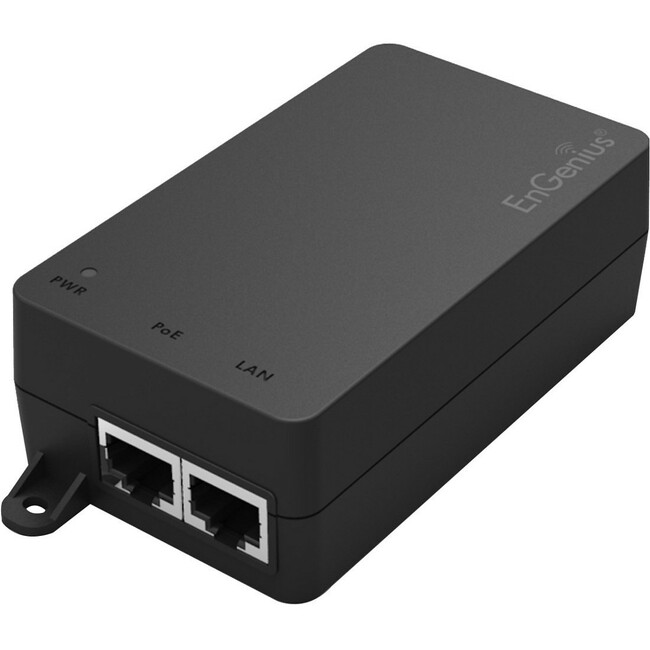

Product Name: 802.3at/af Compatible Gigabit Single Port Poe Adapter
Marketing Information: EnGenius PoE Adapter is easily to power and to network over Ethernet for increasing scalability and reducing installation time and cost.
EPA series is a single-port Power over Ethernet (PoE) adapter for use with gigabit system. The ideal solution could assist installers to solve the limitation in designing networks is the availability of power source. The EnGenius PoE adapter allows delivery of both data and power to an 802.3at/af - compatible Access Point or device over a single Ethernet cable, allowing deployment of them exactly when users needed to provide the best wireless coverage and at much lower installation cost.

Outdoor Networking Facility and Low Port Density Installations
The EPA5006GAT PoE adapter is fully compliance with 802.3at/af defection mechanism, with disconnect, short -circuit and overload protection to assure the securable and reliable connection for 802.3at/af devices. By sending maximum 30W output, Ethernet terminals which need more power such as wireless LAN high power device, IP media center, and web camera are powered remotely.
Product Type: PoE Injector

Technical Information

---

Protection Type:

Over Voltage

Overload Protection

Short Circuit

Over Current

Power Description

---

Input Voltage:

120 V AC

230 V AC

Maximum Input Current: 800 mA
Maximum Output Power: 30 W

Interfaces/Ports

---

Input Ports: 1 x Gigabit Ethernet
Output Ports: 1 x Gigabit Ethernet

Physical Characteristics

---

Form Factor: External
Mount Type: Wall Mountable
Height: 1.31" (33.40 mm)
Width: 2.30" (58.40 mm)
Depth: 3.94" (100 mm)

Miscellaneous

---

Package Contents:

• 802.3at/af Compatible Gigabit Single Port Poe Adapter
• Anchors
• Screws

Certifications & Standards:

• IEEE 802.3at/IEEE 802.3af
• IEC 60950-1:2005 + A1
• UL60950-1
• EN55022:2010
• EN55024:2010 FCC Part15 Class B
• AS/NZS60950-1

Country of Origin: Taiwan

Warranty

---

Limited Warranty: 1 Year
