Description:
General Information
Manufacturer: EnGenius Technologies, Inc
Manufacturer Part Number: EPA5006GP
Brand Name: EnGenius
Product Model: EPA5006GP

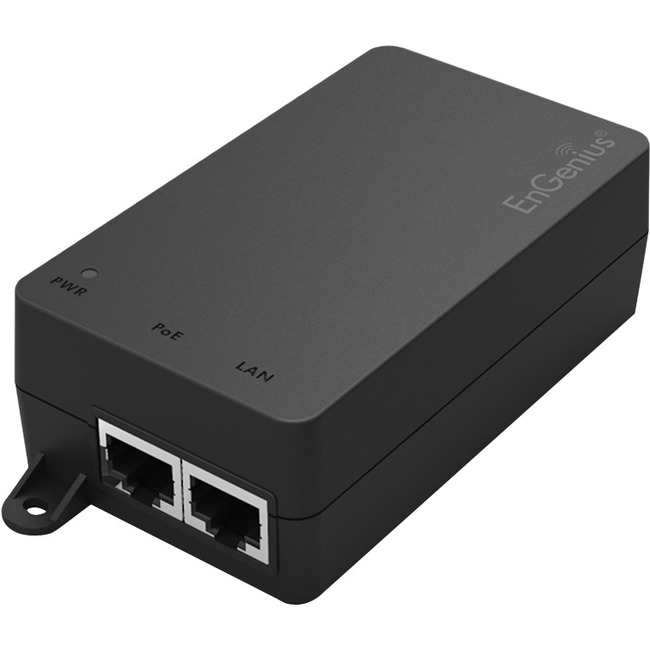

Product Name: Passive 54V Gigabit Single Port PoE Adapter
Marketing Information: EnGenius PoE Adapter is easily to power and to network over Ethernet for increasing scalability and reducing installation time and cost.
EPA series is a single-port Power over Ethernet (PoE) adapter for use with gigabit system. The ideal solution could assist installers to solve the limitation in designing networks is the availability of power source. The EnGenius PoE adapter allows delivery of both data and power to an Passive 54V- compatible Access Point or device over a single Ethernet cable, allowing deployment of them exactly when users needed to provide the best wireless coverage and at much lower installation cost.
Outdoor Networking Facility and Low Port Density Installations
The EPA5006GP PoE adapter is Passive 54V, with disconnect, short -circuit and overload protection to assure the securable and reliable connection for Access Points or other PoE devices. By sending maximum 54V/0.6A output, Ethernet terminals which need more power such as wireless LAN high power device, IP media center, and web camera are powered remotely.
Product Type: PoE Injector
Technical Information
Protection Type: Over VoltageOverload ProtectionPower Description
Input Voltage: 110 V AC220 V ACMaximum Input Current: 800 mA
Maximum Output Power: 32.80 W
Interfaces/Ports
Input Ports: 1 x Gigabit Ethernet
Output Ports: 1 x Gigabit Ethernet
Physical Characteristics
Form Factor: External
Mount Type: Wall Mountable
Height: 1.31" (33.40 mm)
Width: 2.30" (58.40 mm)
Depth: 3.94" (100 mm)
Miscellaneous
Package Contents:
- Passive 54V Gigabit Single Port PoE Adapter
- Anchors
- Screws
Country of Origin: Taiwan
Warranty
Limited Warranty: 1 Year
0 items
):
$51.95
