Description:
General Information
Manufacturer: Vertiv
Manufacturer Part Number: LV4010P-001
Brand Name: Vertiv AVOCENT
Product Line: LV
Product Series: 4000
Product Model: LV4010

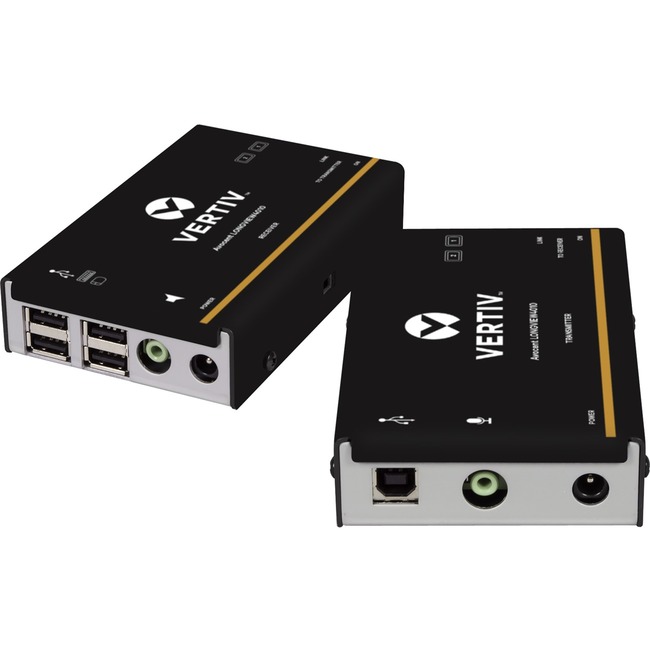

Product Name: LV4010 Single VGA KVM Extender
Marketing Information: The Vertiv Avocent LongView LV4010P KVM extender is part of the Avocent high-performance family of KVM extension solution products. The LV4010P KVM extender allows users to distribute a single-link DVI video stream, USB 2.0, and analog audio over a single CATx cable. The LV4010 transmits and delivers perfect 1080p digital video at distances over 164 feet (50 meters) and resolutions up to 164 MPixels per second (such as 1920x1200 @ 60Hz or 3840x2400 @ 17Hz). Locate critical computing hardware in a secure and temperature-controlled environment, away from the user's workstation environment, while maintaining the same user experience. In operation, the LongView 4010 is truly plug and play, delivering full Extended Display ID (EDID) data from computer to screen ensuring your hardware is always setup to deliver optimal display performance.
More from the Manufacturer
Packaged Quantity: 1
Product Type: KVM Console/Extender
Technical Information
Connectivity Technology: Wired
Number of Computers Supported: 1
Number of Local Users Supported: 1
Maximum Operating Distance: 1000 ft (304800 mm)
Device Type: High Performance KVM
Video
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
USB: Yes
DVI: Yes
Number of USB Ports: 4
Number of DVI Ports: 1
Power Description
Input Voltage: 120 V AC240 V ACInput Voltage Range: 100V AC to 240V AC
Power Consumption: 12.50 W
Physical Characteristics
Rack Height: 3U
Form Factor: Rack-mountable
Transmitter Height: 1" (25.40 mm)
Transmitter Width: 4.70" (119.38 mm)
Transmitter Depth: 3" (76.20 mm)
Receiver Height: 1" (25.40 mm)
Receiver Width: 4.70" (119.38 mm)
Receiver Depth: 3" (76.20 mm)
Transmitter Weight (Approximate): 11.20 oz (317.51 g)
Receiver Weight (Approximate): 11.20 oz (317.51 g)
Miscellaneous
Country of Origin: United Kingdom
Warranty
Limited Warranty: 2 Year
