Description:
General Information
Manufacturer: Honeywell International, Inc
Manufacturer Part Number: 1300G2USBN
Brand Name: Honeywell
Product Line: Hyperion
Product Model: 1300g

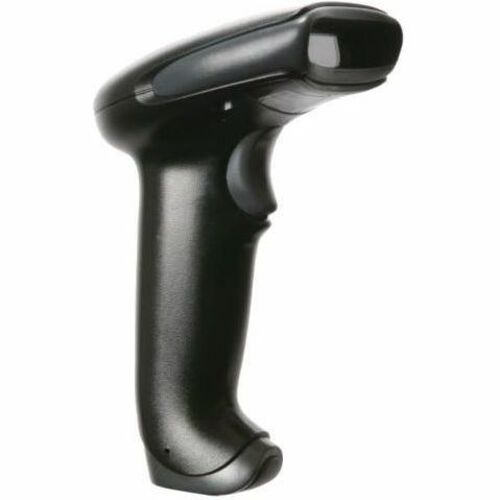

Product Name: Hyperion 1300g Barcode Scanner
Marketing Information:
Linear-Imaging Scanner
Featuring an ideal balance of performance, durability and ergonomics, the Hyperion 1300g provides years of hassle-free scanning, especially in scan-intensive or light industrial applications.
The Hyperion 1300g delivers outstanding linear imaging performance and versatility. Fast intuitive bar code reading out to 18 inches (457mm), and high density bar code reading are both enabled in a single device, eliminating the need to purchase specialty scanners.
With no moving parts to wear out, the Hyperion 1300g is one of the toughest general duty scanners on the market. Designed to keep your operation running smoothly, the Hyperion 1300g is durable enough to hammer nails.
The Hyperion 1300g is the ideal choice for customers who value aggressive scan performance and durability in a general duty handheld linear scanner.
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:
Reads standard 1D and GS1 DataBar™ symbologies
Image Sensor Type:
LinearImagerScan Rate: 270 scan/s
Scan Pattern: Single Line
Scanner Range: Short Range
Scanning Distance: 25.98" (659.89 mm)
Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Motion Tolerance: 20 in/s (508 mm/s)
Maximum Ambient Light: 70000 lux
Drop Specification:
Designed to withstand 50 drops on concrete from 1.5m
Minimum Print Contrast: 20%
Features:
BeepNotification LED Interfaces/Ports
Host Interface: USB
Power Description
Input Current: 200 mA
Standby Current: 125 mA
Environmental Conditions
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Black
Height: 5.90" (149.86 mm)
Width: 3.10" (78.74 mm)
Depth: 4.40" (111.76 mm)
Weight (Approximate): 5.64 oz (160 g)
Miscellaneous
Package Contents:
- Hyperion 1300g Barcode Scanner
- USB Type A 3m straight cable (CBL-500-300-S00)
- Documentation
Ingress Protection (IP) Rating: IP41
Application/Usage: Industrial
Environmentally Friendly: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE) Warranty
Limited Warranty: 5 Year
):
$240.95
