Description:
General Information
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: GBT4500-BK-BTK1
Brand Name: Datalogic
Product Line: Gryphon
Product Series: 4500
Product Model: GBT4500

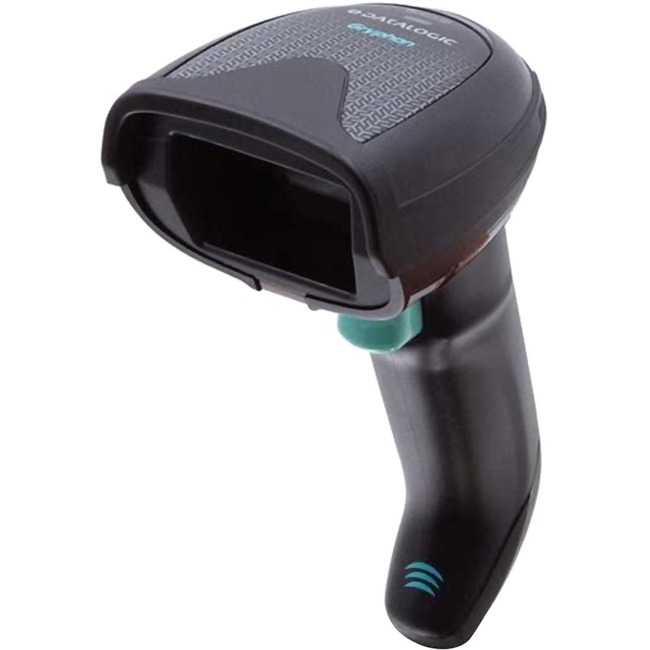

Product Name: Gryphon GBT4500 Handheld Barcode Scanner
Marketing Information: IMAGING TECHNOLOGY
The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.
WIRELESS COMMUNICATIONS
Featuring Bluetooth® wireless technology (GBT model) or narrow band radio communications with Datalogic's STAR Cordless System™ (GM model), the Gryphon 4500 wireless readers provide maximum flexibility to solve any end user application with the best technical solution.
WIRELESS CHARGING
One of the most important technical innovations that the Gryphon 4500 wireless scanners achieve is the battery recharge through an inductive charging system, which enhances the reliability of the entire solution, lowering the total cost of ownership because it eliminates the need for contacts' cleaning and maintenance procedures. The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.
SIMPLE TO USE AND DEPLOY
The Gryphon I 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking.
Datalogic's Motionix™ motion-sensing technology enables the scanner to intuitively switch into hand held mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it's charging.
Packaged Quantity: 3
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:
1D2DBarcode Symbology Supported:
1D: - Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D:
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Micro QR Code
- QR Code
Postal codes:
- Australian Post
- British Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
Stacked codes:
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
Digital Watermarking: Image Sensor Type: Imager
Scan Pattern: Single Line
Scanner Range: Standard Range
Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 35 in/s (889 mm/s)
Image Formats:
BMPJPEGTIFFMaximum Ambient Light: 100000 lux
Drop Specification: Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
Minimum Print Contrast: 15%
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface: USB
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Black
Height: 4.29" (109 mm)
Width: 2.68" (68 mm)
Depth: 6.54" (166 mm)
Weight (Approximate): 8.29 oz (235 g)
Miscellaneous
Ingress Protection (IP) Rating: IP52
Application/Usage: IndustrialRetailHealthcareTransportation
