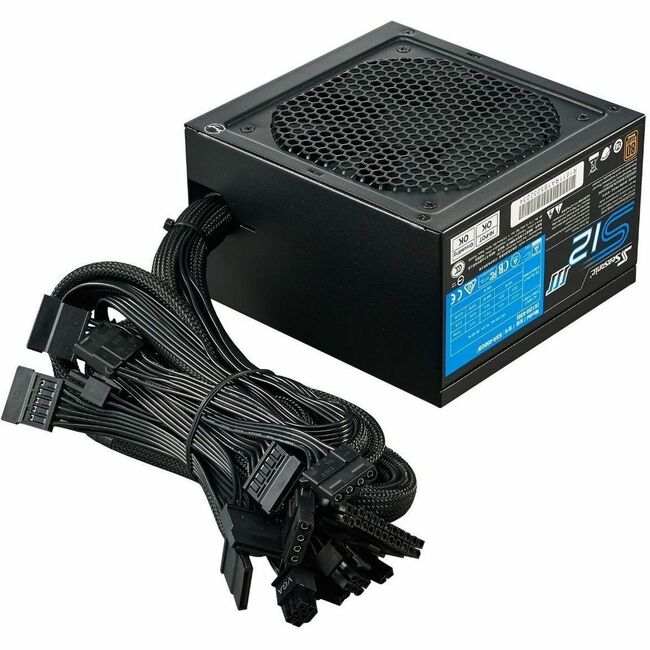

Seasonic S12III 650W Power Supply


Seasonic S12III 650W Power Supply

Price (CDN): $119.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $119.95

Quantity:




Description:
General Information
Manufacturer: Sea Sonic Electronics Co., Ltd
Manufacturer Part Number: SSR-650GB3
Brand Name: Seasonic
Product Series: S12III
Product Name: S12III 650W Power Supply
Marketing Information:

The S12III Bronze Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic S12III-Series achieves 80 PLUS® Bronze standard of providing at least 82 %, 85 % and 82 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the S12III Bronze series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the S12III units utilize the LLC resonant converter design, and the industry's leading Smart and Silent Fan Control (S2FC).

80 PLUS®BRONZE

The 80 PLUS® Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill.

The 80 PLUS®Bronze certification guarantees greater than 82 %, 85 % and 82 % efficiency at 20 %, 50 % and 100 % operating loads, respectively. Sea Sonic's Bronze Series is an economical choice with great performance and high built-in value.

S2FC - SMART AND SILENT FAN CONTROL

The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.


Product Type: Power Supply
Technical Information
Specification Compliance: ATX12V
Efficiency: 85%
Number of Fans: 1
Fan Diameter: 120 mm
Protection Type:
  • Over Power
  • Over Voltage
  • Under Voltage
  • Short Circuit
  • Reliability
    MTBF: 100000 Hour
    Power Description
    Input Voltage:
  • 120 V AC
  • 230 V AC
  • Output Voltage:
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
  • 5 V SB
  • Output Voltage Detail:
  • 3.3 V DC @ 20 A
  • 5 V DC @ 20 A
  • 12 V DC @ 54 A
  • -12 V DC @ 0.3 A
  • 5 V SB @ 2.5 A
  • Output Current:
  • 20 A
  • 54 A
  • 300 mA
  • 2.50 A
  • Output Power: 650 W
    Interfaces/Ports
    Number of SATA Power Connectors: 6
    PCI Express Connector: Yes
    Number of (6+2 pin) PCI Express Power Connectors: 4
    Number of (4+4 pin) CPU Power Connectors: 1
    Physical Characteristics
    Form Factor:
  • ATX
  • Internal
  • Height: 3.39" (86 mm)
    Width: 5.91" (150 mm)
    Miscellaneous
    Energy Star: Yes
    Energy Efficiency Certification: 80 Plus Bronze
    Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Warranty
    Limited Warranty: 5 Year
