Description:
General Information
Manufacturer: MSI
Manufacturer Part Number: B550TMHWK
Brand Name: MSI
Product Line: MAG
Product Model: B550 TOMAHAWK

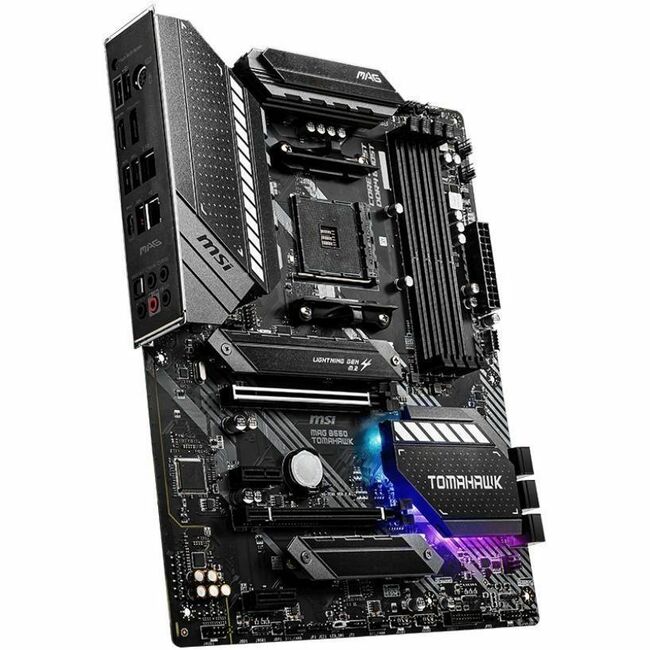

Product Name: MAG B550 TOMAHAWK Desktop Motherboard
Marketing Information:
MAG
Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B550
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3Ryzen 5Ryzen 7Ryzen 9Multi GPU Supported: CrossFire
Memory
Number of Memory Slots: 4
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 128 GB
Memory Speed Supported: 1866 MHz2133 MHz2400 MHz2667 MHz2800 MHz2933 MHz3000 MHz3066 MHz3200 MHz3466 MHz3600 MHz3733 MHz3866 MHz4000 MHz4133 MHz4266 MHz4400 MHz4533 MHz4600 MHz4733 MHz4800 MHz4866 MHz5000 MHz5100 MHzMemory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0101Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Total Number of Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.2 Ports: 4
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 3
Physical Characteristics
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
Miscellaneous
Country of Origin: China
Warranty
Limited Warranty: 3 Year
