Description:
General Information
Manufacturer: Vantec Thermal Technologies
Manufacturer Part Number: UGT-PCE320C
Brand Name: Vantec
Product Model: UGT-PCE320C

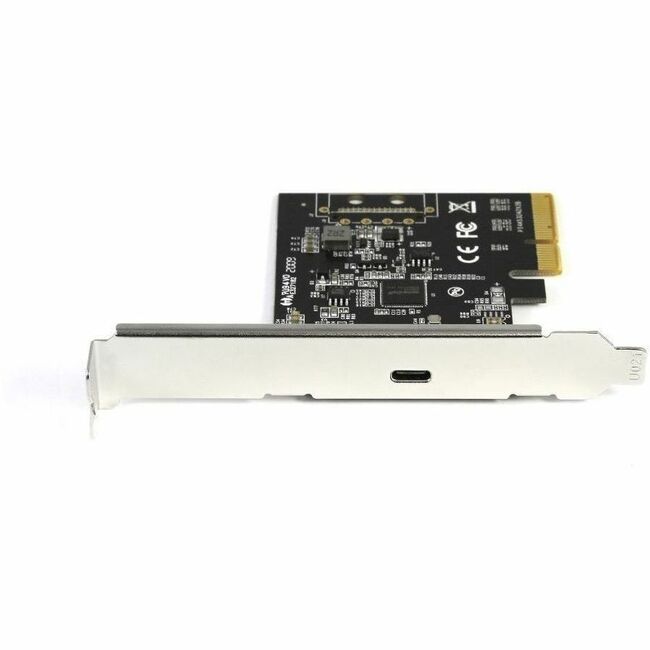

Product Name: Single Port USB 3.2 Gen2x2 20Gbps Type C PCIe Host Card
Marketing Information:
The Vantec Single Port USB 3.2 Gen2x2 20Gbps Type C PCIe Host Card is design to offer the fastest USB 3.2 performance possible. This single port unique design allows for maximum bandwidth from the 4 lanes of the PCIe slot to the connected USB storage device. This one controller can handles data transfer at a theoretical speed of 20Gbps. This translates in to superfast file transfer and work done. Most USB port are only offering 10Gbps but this is double the speed with many others features like Latest Multi-OS compatibility, No drivers required, No Power Plug required, Plug & Ready, Standard & Low profile bracket, legacy compatibility and more.
Packaged Quantity: 1
Product Type: USB Adapter
Technical Information
Host Interface: USB 3.2 (Gen 2) Type C
Media & Performance
Data Transfer Rate: 2.50 GB/s1.25 GB/s640 MB/sInterfaces/Ports
Total Number of USB Ports: 1
USB Version: 3.2 Gen 2
USB Connector Type: Type-C
Software
Operating System Supported: Windows 8Windows 10Windows 8 64-bitWindows 10 (64-bit)Windows 11Windows 11 x64Linux 3.2Linux 3.10Linux 3.12Linux 4.2Linux 4.4Physical Characteristics
Form Factor: Plug-in Card
Height: 0.79" (20 mm)
Width: 2.68" (68 mm)
Length: 3.15" (80 mm)
Weight (Approximate): 40 g
Miscellaneous
Package Contents:
- Single Port USB 3.2 Gen2x2 20Gbps Type C PCIe Host Card
- Low Profile Bracket
- Quick Install Guide
Application/Usage:
Hard DriveFlash DrivePlatform Supported: PC
Country of Origin: China
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
