General Information

---

Manufacturer: Grandstream Networks, Inc
Manufacturer Part Number: GWN7660
Brand Name: Grandstream
Product Model: GWN7660

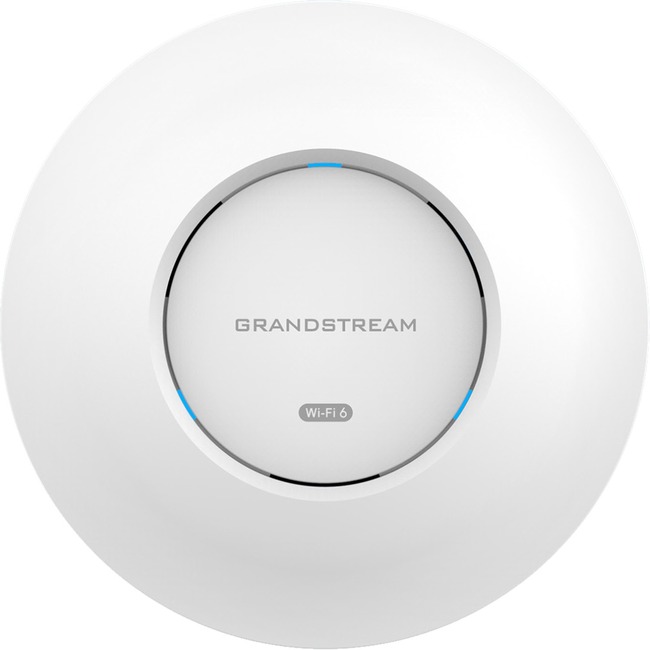

Product Name: 802.11ax 2x2:2 Wi-Fi 6 Access Point
Marketing Information: The GWN7660 is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7660 uses a controller-less distributed network management design in which the controller is embedded within the product's Web user interface. The GWN7660 is also supported by GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voiceover-Wi-Fi deployments and offers a seamless connection with Grandstream's Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, GWN7660 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

• 1.77Gbps aggregate wireless throughput and 2x Gigabit Ethernet ports
• Dual-band 2x2:2 MUMIMO with DL/UL OFDMA technology
• Up to 175-meter coverage range
• Supports 256 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self power adaptation upon auto detection of PoE or PoE+
• Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premisebased software controller

Product Type: Wireless Access Point

Technical Information

---

Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Network Band: Dual Band
Frequency Band:

2.40 GHz

5 GHz

Total Number of Antennas: 2
Number of Internal Antennas: 2
Indoor/Outdoor: Indoor
Wireless Transmission Speed: 1.77 Gbit/s
MIMO Technology: Yes
Data Encryption: Yes
Encryption Standard:

WEP

WPA

WPA2-PSK

WPA2-ENT

TKIP

AES

WPA3

Interfaces/Ports

---

Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes

Physical Characteristics

---

Form Factor:

Wall Mountable

Ceiling Mountable

Antenna Form Factor: Internal
Height: 1.61" (40.80 mm)
Width: 7.10" (180.40 mm)
Depth: 7.10" (180.40 mm)
Weight (Approximate): 15.63 oz (443 g)

Miscellaneous

---

Package Contents:

• 802.11ax 2x2:2 Wi-Fi 6 Access Point
• Mounting Kits
• Quick Start Guide
