General Information

---

Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: R7J32A
Brand Name: HPE
Product Series: 630
Product Model: AP-635

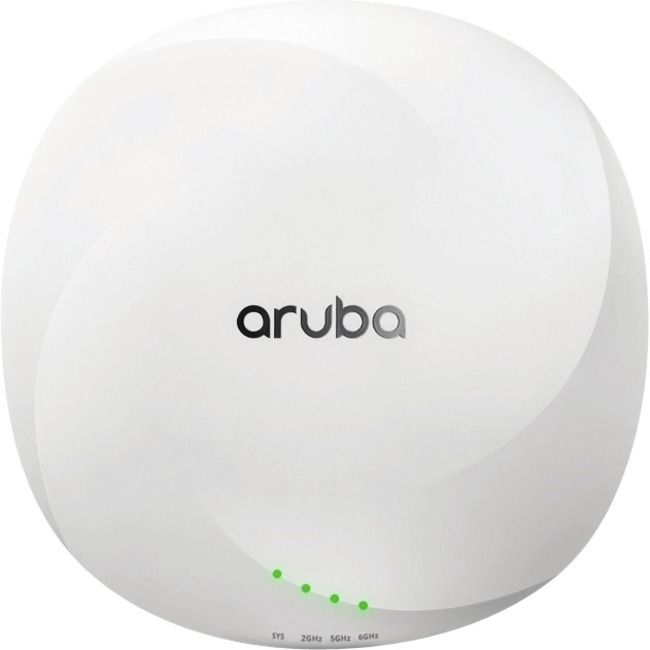

Product Name: AP-635 Wireless Access Point
Marketing Information: Fast, resilient, and secure Wi-Fi 6E connectivity

For enterprises who need more wireless capacity and wider channels, Aruba 630 Series Campus APs are designed to take advantage of the 6 GHz band via three dedicated radios. By using the 6 GHz band, capacity is more than doubled - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 630 Series includes ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.

MORE CAPACITY AND WIDER CHANNELS

The 630 Series APs are designed to take advantage of the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. It delivers 3.9 Gbps maximum aggregate data rates Tri-radio, 2x2:2 MIMO in all three bands (3.9 Gbps aggregate peak).

Advantages of 6GHz

Wi-Fi 6E provides up to 1200 MHz in the 6 GHz band for higher throughput and improved application performance. With up to seven 160 MHz channels, Wi-Fi 6E can better support low-latency, bandwidth hungry applications like high-definition video and artificial reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6 GHz band so there is no interference or slowdowns due to legacy devices.

Device class support

The 630 Series APs are part of the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services which is required for standard class APs.

LESS INTERFERENCE

630 Series Access Points include Aruba's ultra tri-band filtering, which enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without experiencing interference. Since there is only 50 MHz between 5 GHz and the 6 GHz, without advanced filtering, enterprises would likely experience problems between the bands and would therefore be limited in the number of channels available. By applying advanced filtering capabilities, enterprises can take full use of available spectrum without creating coverage gaps or islands.

BUSINESS CONTINUITY

The Series 630 APs provide high availability with two HPE Smart Rate ethernet ports for hitless failover for both data and power. Configurable to 1 or 2.5 Gbps, these dual ports provide business continuity for mission critical applications.

GLOBAL READINESS

While the need for more Wi-Fi capacity is recognized across the globe, countries are approaching 6 GHz differently. The 630 Series APs are set up to automatically update regulatory rules once 6E regulations have been approved and certified.
Product Type: Wireless Access Point

Technical Information

---

Wireless LAN Standard: 802.11ax
Bluetooth Standard: Bluetooth 5
Network Band: Tri Band
Frequency Band:

2.40 GHz

5 GHz

6 GHz

Indoor/Outdoor: Indoor
Wireless Transmission Speed: 3.90 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:

WPA-ENT

WPA2-ENT

WPA3-ENT

WPA

WPA2

WPA2-MPSK

WPA3

WPA3-SAE

Interfaces/Ports

---

Ethernet Technology: 2.5 Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
PoE (RJ-45) Port: Yes
PoE PD Port: Yes
USB: Yes

Physical Characteristics

---

Form Factor:

Desktop

Ceiling Mountable

Antenna Form Factor: Internal
Height: 1.97" (50 mm)
Width: 8.66" (220 mm)
Depth: 8.66" (220 mm)
Weight (Approximate): 2.87 lb (1300 g)

Miscellaneous

---

TAA Compliant: Yes
