General Information

---

Manufacturer: Star Micronics, Inc
Manufacturer Part Number: 37950380
Brand Name: Star Micronics
Product Line: mC-Print3
Product Model: MCP31WNH BK US

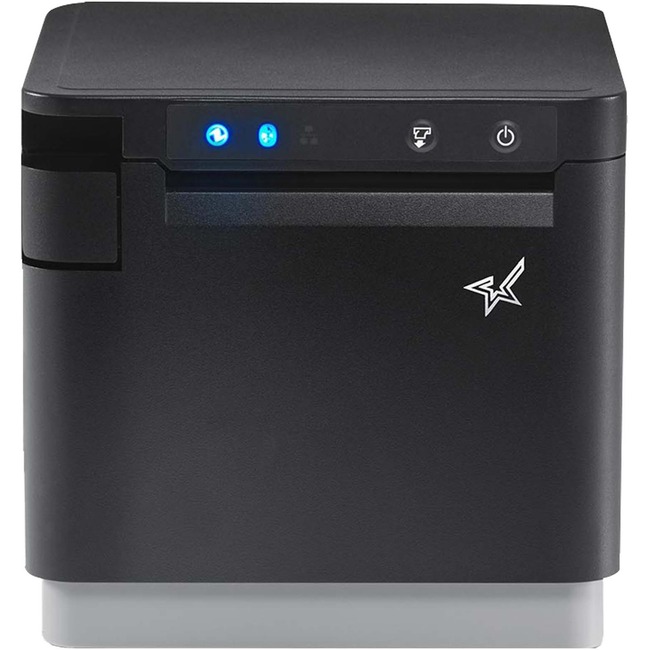

Product Name: mC-Print3 Thermal Printer
Marketing Information: The mC-Print3 is a modern and connected 3-inch frontloading and front-exiting printer. With the mC-Print3's compact size and fast printing speed (250 mm/sec), it is the perfect addition to any retail, restaurant, pharmacy, or grocery store. The MCP31W NH features a wide range of software support including Windows, iOS, Android, web, and cloud with multiple connectivity options such as USB, Lightning USB, WLAN, and Ethernet. The main hub connects a peripheral including a cash drawer, scanner, or customer display. The mC-Print3 also includes Steady LAN technology and provides wired Ethernet service to iOS, Android, and Windows devices connected to a networked printer via the Lightning (iOS10 or later required) or USB-C cable. SteadyLAN is available on the following models: mCP31L NH, mCP31LBi NH, mCP31C, mCP31CB, mCP31W NH, and mCP31WBi.
Product Type: Direct Thermal Printer

Technical Information

---

Recommended Use: Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 250 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 3.15"
Barcode Symbology Supported:

PDF417

Maxi Code

Character Sets:

ANK 95

32 Int 128 Graphic

Connectivity Technology: Wired & Wireless
Application/Usage:

Retail

Restaurant

Pharmacy

Features:

Compact

Splash Proof

Cash Drawer Port

Wireless Print Technology:

Star CloudPRNT

Star Micronics WebPRNT

Interfaces/Ports

---

USB Host: Yes
USB: Yes

Network & Communication

---

Ethernet: Yes
Ethernet Technology: Ethernet
Wireless LAN: Yes

Cutter

---

Cutter: Yes
Cutting Method: Automatic
Cutter Type: Guillotine
Cut Type: Partial Cut
Cutter Life: 2000000 Cuts

Media Types & Handling

---

Media Type: Receipt
Media Sensor:

Cover Open Sensor

Paper Near End Sensor

Media Thickness: 3 mil
Maximum Roll Diameter: 3.3"
Maximum Label Width: 3.15" (80 mm)

Software

---

Operating System Supported:

Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™, USB Vendor Clss, CUPS, Mac, Mac OS X, Linux™, StarPRNT SDK with support for iOS and Android

Reliability

---

Mean Cycles Between Failures (MCBF): 60000000
Ingress Protection (IP) Rating: IPX2
Print Head Life: 100km

Environmental Conditions

---

Operating Temperature: 41°F (5°C) - 113°F (45°C)
Operating Relative Humidity: 10% - 90%
Storage Temperature: -4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity: 10% - 90%

Physical Characteristics

---

Product Color: Black
Height: 5.51" (140 mm)
Width: 5.20" (132 mm)
Depth: 4.92" (125 mm)

Miscellaneous

---

Platform Supported:

iOS

Android

PC

Mac

Certifications & Standards:

UL, C-UL, TuV, FCC, VCCI, EN55022, CE

Warranty

---

Limited Warranty: 2 Year
