General Information

---

Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: R8R44AABA
Brand Name: HPE
Product Line: Instant On
Product Series: 1430

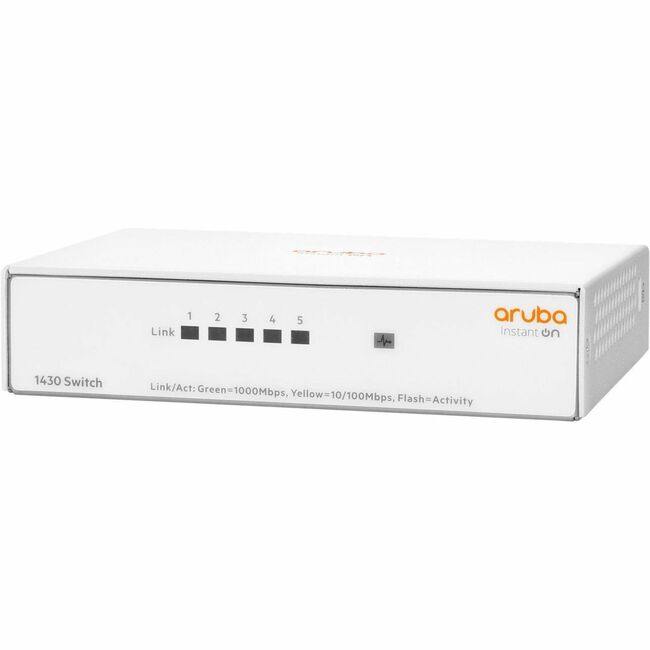

Product Name: Instant On 1430 5G Switch
Marketing Information: Aruba Instant On 1430 Switch Series
Technology brings new revenue opportunities, more effective communication, and improved productivity to businesses of all sizes. Yet it also poses daily challenges of configuration and maintenance, especially for small businesses who lack IT support. Small offices and home offices need reliable network connectivity that's fast, configuration-free, and affordable for even the most budgetstrapped businesses.
The Aruba Instant On 1430 Switch Series is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities - at an affordable price point - to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.
The Aruba Instant On 1430 Switch Series includes seven switches in PoE and non-PoE configurations: one (1) 5-port, two (2) 8- port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models. With the PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices. All switches are fan-less, making them ideal for acoustically sensitive areas, and unmanaged requiring no configuration (not managed by Aruba Instant On management).
Product Type: Ethernet Switch

Technical Information

---

Features: Fanless

Interfaces/Ports

---

Total Number of Network Ports: 5
Network (RJ-45): Yes
Uplink Port: Yes
Port/Expansion Slot Details: 5 x Gigabit Ethernet Network

Media & Performance

---

Media Type Supported:

Twisted Pair

Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

100Base-TX

10/100/1000Base-T

Network & Communication

---

Layer Supported: 2
Networking Standards:

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3af

IEEE 802.1x

IEEE 802.1p

IEEE 802.3i

IEEE 802.3z

IEEE 802.3at

IEEE 802.3az

IEEE 802.3x

Management & Protocols

---

Manageable: No

Power Description

---

Input Voltage:

120 V AC

230 V AC

Power Source: Power Adapter

Physical Characteristics

---

Product Color: White
Form Factor:

Table Top

Under Table

Wall Mountable

Height: 1.02" (26 mm)
Width: 4.57" (116 mm)
Depth: 3.66" (93 mm)
Weight (Approximate): 9.60 oz (272.16 g)

Warranty

---

Limited Warranty: Lifetime
