Description:
General Information
Manufacturer: EnGenius Technologies, Inc
Manufacturer Part Number: EPA5090XBT
Brand Name: EnGenius
Product Model: EPA5090XBT

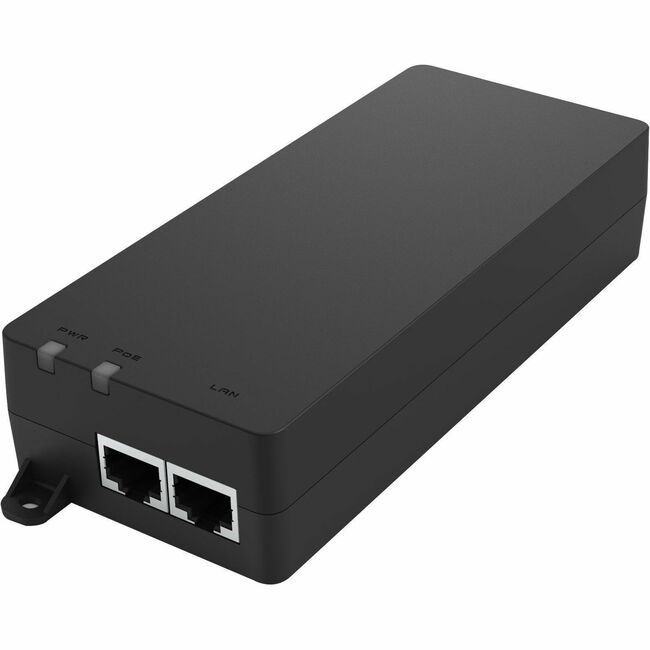

Product Name: EPA5090XBT PoE Injector
Marketing Information:
The EnGenius EPA5090XBT PoE Injector delivers 90-watts of power and 10Gb data communication to compatible network devices up to 328 feet (100m) over Cat5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.
- IEEE 802.3bt Type 3 & 4 compliant
- IEEE 802.3af/at backward compatible
- Backward compatible for legacy PoE while future proofing network with up to 10Gb bandwidth
- Supports 10/100/1000 Mbps and 2.5/5/10 Gbps applications
- Output power up to 90W over four pairs with auto-detection on power requirement
- Leverage energy efficient PoE of up to 90W with full power capabilities
- Single-port PoE Midspan Injector flexible design allows for either desktop or surface-mount use
- Fan-less design ideal for silent operation
- Simple plug-and-play installation
Packaged Quantity: 1
Product Type: PoE Injector
Technical Information
Protection Type: Surge ProtectionOver CurrentOver VoltageShort CircuitPower Description
Input Voltage: 120 V AC230 V ACMaximum Input Current: 950 mA
Maximum Output Power: 90 W
Interfaces/Ports
Input Ports: 1 x 10/100/1000Base-T
Output Ports: 1 x 10/100/1000Base-x
Physical Characteristics
Height: 1.34" (34.04 mm)
Width: 2.56" (65.02 mm)
Length: 5.90" (149.86 mm)
Weight (Approximate): 12.50 oz (354.37 g)
Miscellaneous
Package Contents:
- EPA5090XBT PoE Injector
- 1 x Quick Installation Guide (Printed on side of Box)
- 1 x Power Cord - 16 inches (40.64cm)
Certifications & Standards:
- IEC 62328-1: 2014
- UL 62328-1
- FCC Subpart 15 Class B
- EN 55032: 2012 / AC: 2013
- EN 55024: 2010
- IEEE 802.3af/at/bt
Warranty
Limited Warranty: 1 Year
