General Information

---

Manufacturer: EnGenius Technologies, Inc
Manufacturer Part Number: ENH500-AX KIT
Brand Name: EnGenius
Product Model: ENH500-AX KIT

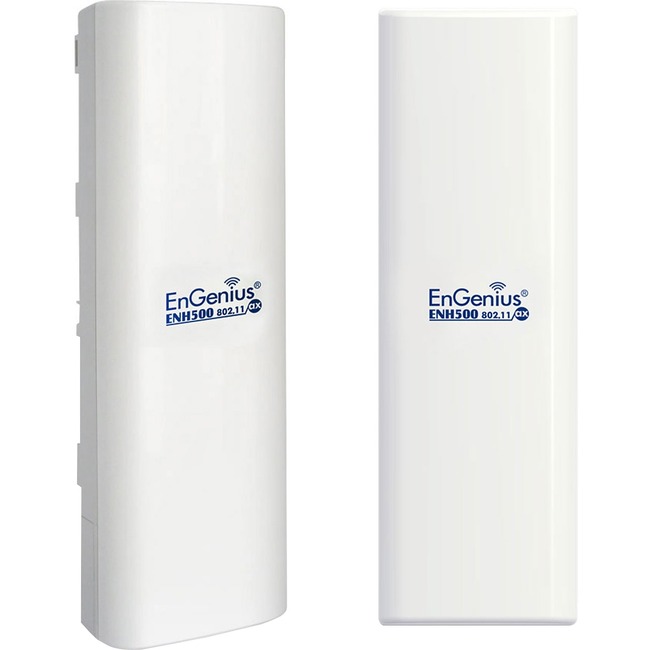

Product Name: ENH500-AX KIT Wi-Fi 6 Point-to-Point Bridge
Marketing Information: The EnGenius ENH500-AX 5GHz Wi-Fi 6 (802.11ax) 2x2 Outdoor Wireless Bridge features the newest generation of wireless technology delivering high density Wi-Fi performance transmissions between buildings and across large outdoor properties without the exorbitant cost of running fiber cable. With advantages over the older Wi-Fi standards, the Wi-Fi 6 bridge significantly increases throughput, supports greater efficiency, and accommodates 8k ultra HD video and heavy multi-application traffic with extended bandwidth over greater distances. The Wi-Fi 6 "invisible wire" bridge uses the latest in Wi-Fi technology to achieve longer ranges when paired with another Wi-Fi 6 bridge in a point-to-point/multiple point deployment.
Packaged Quantity: 2
Product Type: Wireless Bridge

Technical Information

---

Wireless LAN Standard: IEEE 802.11ax
Network Band: Dual Band
Frequency Band:

5 GHz

2.40 GHz

Indoor/Outdoor: Outdoor
Wireless Transmission Speed: 1.17 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:

WPA3-ENT

WPA3-PSK

WPA3-SAE

WPA3

WPA2-PSK

WPA2-ENT

WPA2-AES

Ingress Protection (IP) Rating: IP55

Interfaces/Ports

---

Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes

Power Description

---

Power Consumption: 12.50 W

Physical Characteristics

---

Form Factor:

Pole-mountable

Wall Mountable

Antenna Form Factor: Internal
Height: 3.30" (83.82 mm)
Width: 2.16" (54.86 mm)
Depth: 10.23" (259.84 mm)
Weight (Approximate): 1.34 lb (607.81 g)

Miscellaneous

---

Package Contents:

• ENH500-AX KIT Wi-Fi 6 Point-to-Point Bridge
• 2 x PoE Injector (EPA5006GR)
• 2 x Power Cords
• 2 x Pole Mount Brackets
• 2 x Pole Mount Straps
• 2 x Wall Mount Screw Kits
• 1 x Product Card

Country of Origin: Taiwan

Warranty

---

Limited Warranty: 1 Year
