General Information

---

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMT1500CNC
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS

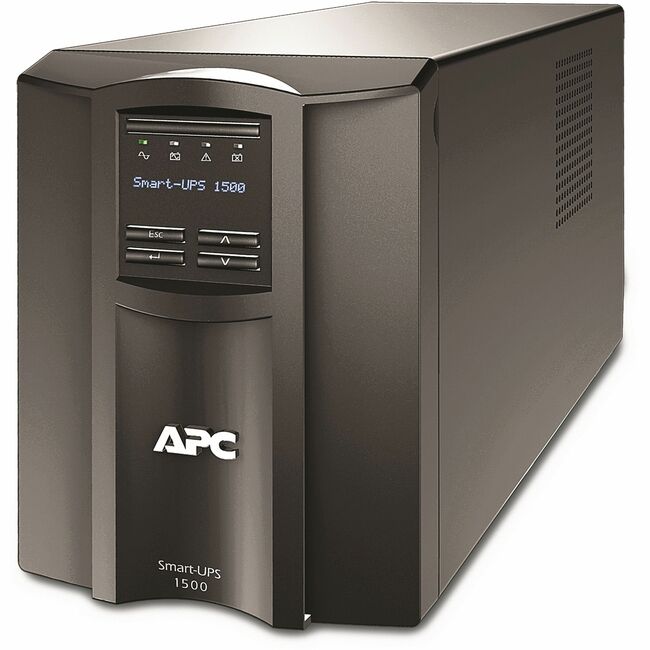

Product Name: Smart-UPS 1500VA Tower UPS
Marketing Information: This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 8 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

More from the Manufacturer

Packaged Quantity: 1
Product Type: Line-interactive UPS

Technical Information

---

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P
Receptacle Detail: 8 x NEMA 5-15R
Cord Length: 6 ft (1.83 m)
Transfer Time: 10 ms
Application/Usage:

IT System

Network

Business

Critical System

Server

Virtual Machine

Hyperconverged Infrastructure (HCI)

Storage

Network Closet

Desktop

VoIP

Retail

POS

Power Description

---

Load Capacity (VA): 1.44 kVA
Load Capacity (Watt): 1 kW
Input Voltage: 120 V
Input Voltage Range:

75 V AC - 154 V AC

82 V AC - 144 V AC

Output Voltage: 120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 680 J

Display & Graphics

---

Display: LCD

Management

---

Network Management: SmartConnect
Alarm:

On Battery

Low Battery

Configurable Delay

Interfaces/Ports

---

USB: Yes

Battery Information

---

Battery Chemistry: Lead Acid
Battery Energy: 1468.8 kJ
Backup/Run Time (Full Load): 6.50 Minute
Backup/Run Time (Half Load): 23.07 Minute
Battery Life: 5 Year
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes

Environmental Conditions

---

Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Storage Relative Humidity: 95%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 225 BTU/h

Physical Characteristics

---

Product Color: Black
Height: 8.62" (219 mm)
Width: 6.73" (171 mm)
Depth: 17.28" (439 mm)
Form Factor: Tower
Weight (Approximate): 54.23 lb (24598.31 g)

Miscellaneous

---

Package Contents:

• Smart-UPS 1500VA Tower UPS
• Installation Guide
• USB Cable

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 3 Year
Additional Warranty Information: 3 years repair or replace (excluding battery) and 2 years for battery
