Description:
General Information
Manufacturer: MSI
Manufacturer Part Number: Z790TOMMAXWI
Brand Name: MSI
Product Line: MAG
Product Model: MAG Z790 TOMAHAWK MAX WIFI

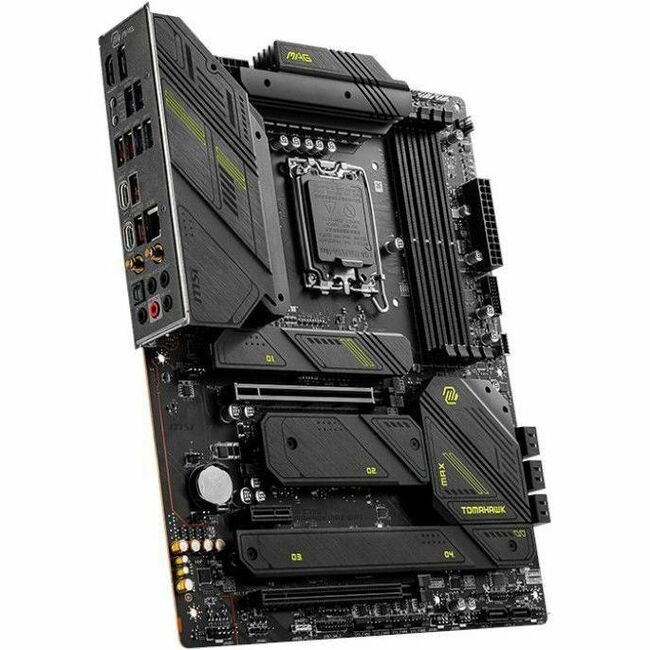

Product Name: MAG Z790 TOMAHAWK MAX WIFI Gaming Desktop Motherboard
Marketing Information:
MAG Z790 TOMAHAWK MAX WIFI is designed for gamers, providing a stable, solid, and durable foundation for their PC builds. Coming up with Wi-Fi 7 solution, 2.5G LAN, DDR5, PCIe 5.0 solutions, and exclusive M.2 Shield Frozr, it's ready for Intel® next Gen and 13th Gen Core processors.
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Extended Heatsink
- Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
- Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
- The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad &Additional Choke Pad
- High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: Z790
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 13th Gen12th GenProcessor Supported: Pentium GoldCeleronCoreMemory
Number of Memory Slots: 4
Memory Form Factor: UDIMMDIMMMaximum Memory Supported: 192 GB
Memory Speed Supported: 7200 MHz7000 MHz6800 MHz6600 MHz6400 MHz6200 MHz6000 MHz5800 MHz5600 MHz5400 MHz5200 MHz5000 MHz4800 MHz7800 MHz7600 MHz7400 MHzMemory Technology: DDR5 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 01510Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 2
PCI Express Standard: PCI Express 5.0PCI Express 4.0PCI Express 3.0Interfaces/Ports
Total Number of USB Ports: 10
Number of USB 3.2 Gen 1 Type-A Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 4
Number of USB 3.2 Gen 2 Type-C Ports: 1
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
Miscellaneous
Package Contents:
- MAG Z790 TOMAHAWK MAX WIFI Gaming Desktop Motherboard
- Quick Installation Guide
- European Union Regulatory Notice
- 2 x Sata Cables
- EZ m.2 Clips
- USB Drive
- cable sticker
- wi-fi antenna
- front panel connector
):
$360.95
