Description:
General Information
Manufacturer: Shuttle, Inc
Manufacturer Part Number: NC40U
Brand Name: Shuttle
Product Line: XPC nano
Product Series: NC40U
Product Model: NC40U

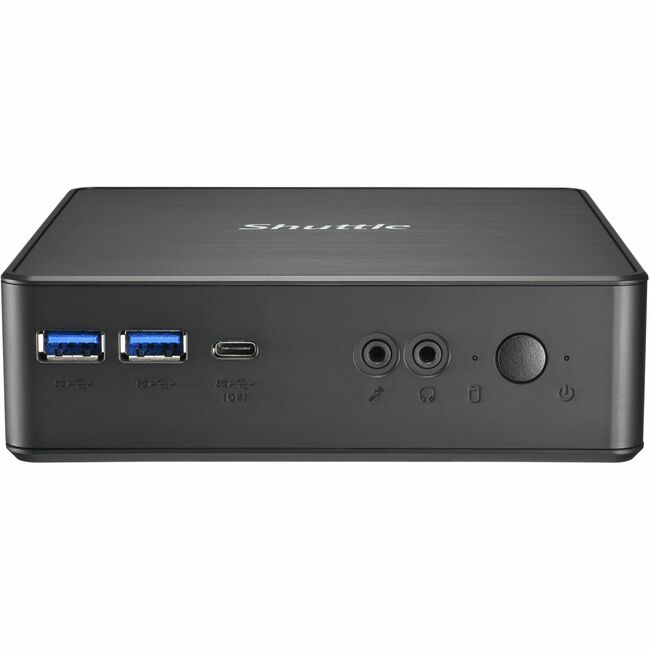

Product Name: XPC nano Barebone NC40U
Marketing Information:
MANY PORTS AND HIGH PERFORMANCE IN NANO-FORMAT
The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.
Product Type: Barebone System
Processor
Processor Manufacturer: Intel
Processor Type: Celeron
Processor Model: 7305
Processor Core: Penta-core (5 Core)
Processor Speed: 1.10 GHz
Chipset
Chipset Manufacturer: Intel
Memory
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-3200/PC4-25600
Total Number of Memory Slots: 2
Controllers
Controller Type: Serial ATA/600NVMeRAID Supported: Yes
RAID Levels: 0, 1
Display & Graphics
Graphics Controller Manufacturer: Intel
Graphics Controller Model: UHD Graphics
Graphics Memory Technology: DDR4 SDRAM
Graphics Memory Accessibility: Shared
Network & Communication
Ethernet Technology: Gigabit Ethernet
Wireless LAN: No
Interfaces/Ports
HDMI (Rear): Yes
Total Number of USB Ports: 7
Number of USB 3.2 Gen 1 Ports: 4
Number of USB 3.2 Gen 2 Ports: 2
USB Type-C (Front): Yes
USB Type-C Detail: 1x USB 3.2 Gen 1, Type C
Network (RJ-45): Yes
Operating System
Operating System Supported: Windows 10 x64Windows 11 x64LinuxPower Description
Maximum Power Supply Wattage: 65 W
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 1.65" (42 mm)
Width: 5.59" (142 mm)
Depth: 5.59" (142 mm)
Weight (Approximate): 14.11 oz (400 g)
Miscellaneous
Energy Star: Yes
